SP-V CUPLA NITTO 4S-V
Automatic shut-off valves in both socket and plug for vacuum applications. Each can withstand a vacuum of as high as 1.3 x 10-1 Pa even when disconnected.
PRODUCT LINE: For High Purity Chemicals (Two-way shut-off) – SP-V Cupla, Body Material Brass

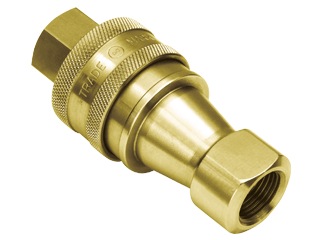

Representative Products: SP-V CUPLA 4S-V BRASS CR
– Uses automatic shut-off valves with ultra-tight sealed construction in both socket and plug. Ideal for vacuum applications.
– Having automatic shut-off valves in both socket and plug facilitates easy fluid handling. Suitable for a wide range of vacuum applications as high as 1.3 x 10-1 Pa (1 x 10-3 mmHg) even when disconnected.
– Three types of seal material are available to suit any of the diversified production lines for air conditioners, refrigerators or similar.
– Can be connected with SP Cupla Type A.
|Model name||Product code||Product No||JAN code||Group name||Subgroup name|
|4S-V BRASS CR||00439||CA93084||4992338004392||CUPLA Quick Connect Couplings||For Inert Gas and Vacuum (Two-way shut-off/Straight Through)|
|Series name||Applicable fluid|
|Seal material||Valve structure|
|End configuration||Size of end configuration|
|Working temperature||Suitability for Vacuum|
Other products of the line: SP-V Cupla, Body Material Brass
Related Products line:

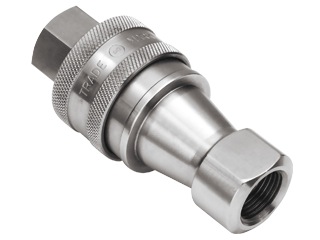

- SP-V Cupla, Body Material Stainless Steel
Product details at:: Catalog SP-V Cupla
